Motorcycle Scooter Parts Magnetic Generator Stator Coil Fit For Honda CD110 A High performance ignition coil

Product Introduction

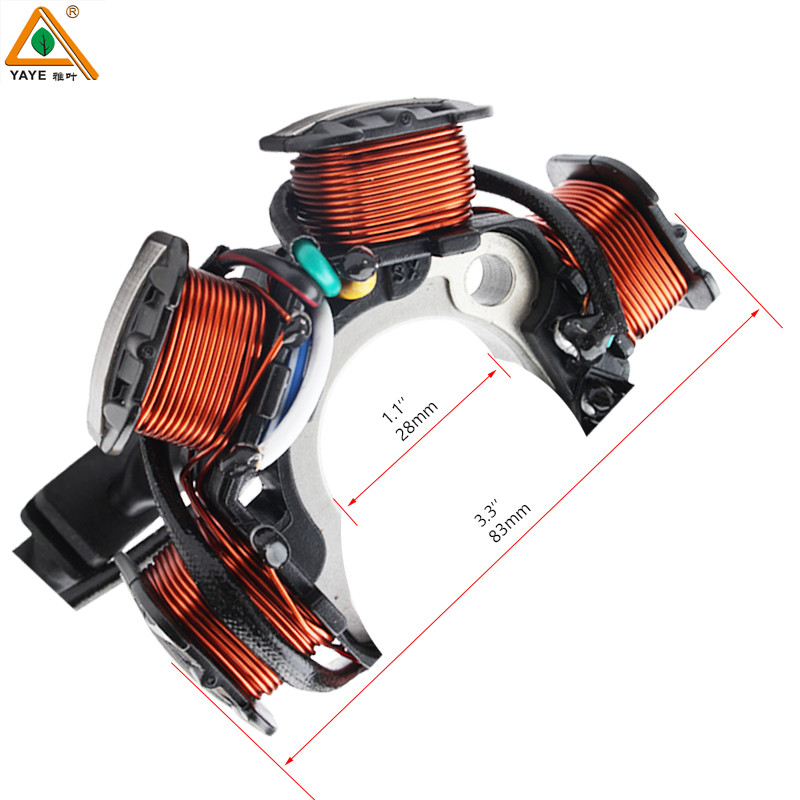

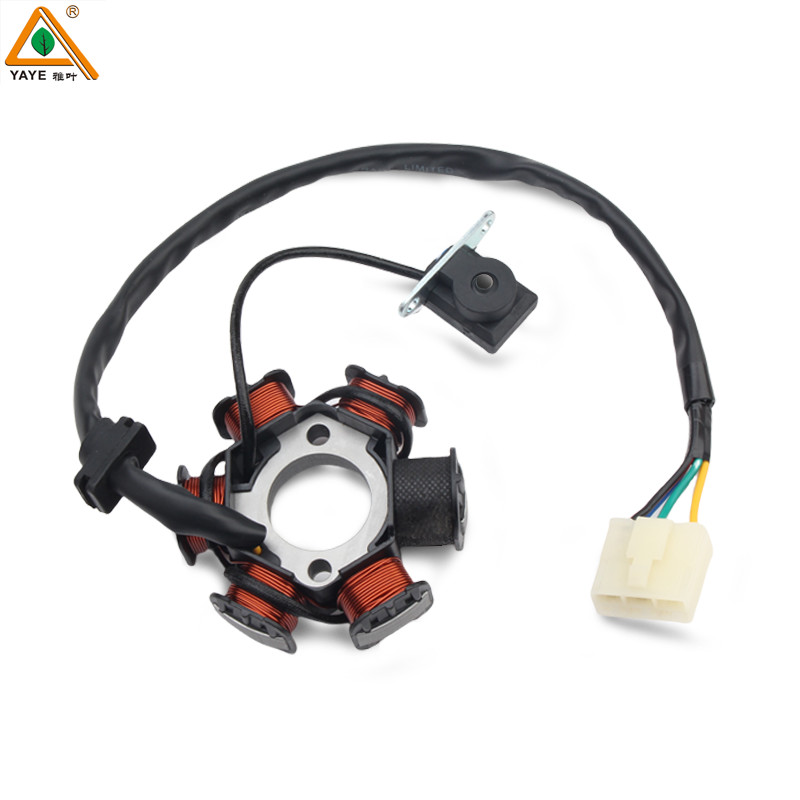

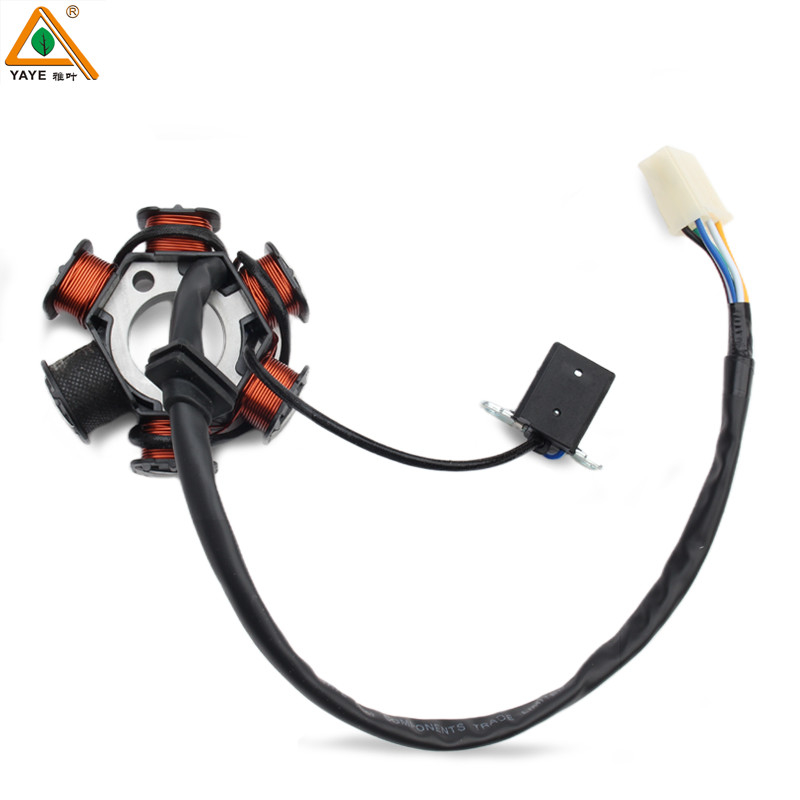

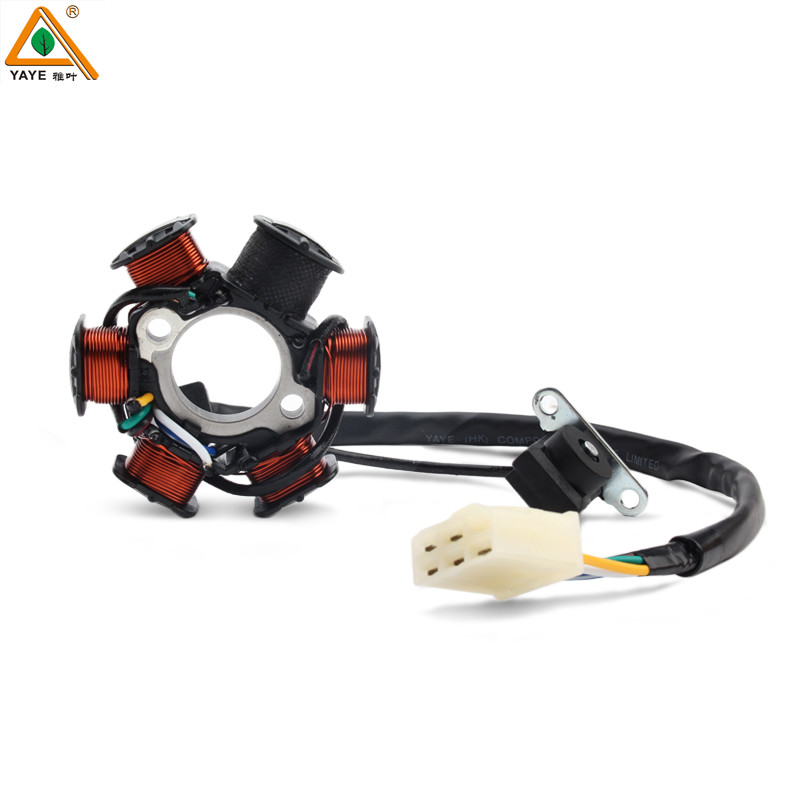

Motorcycle Scooter Parts Magnetic Generator Stator Coil Fit For Honda

CD110 A High performance ignition coil.

The stator coil of a magnetic motor usually includes multiple coils, which

play different roles in the operation of the magnetic motor. For

motorcycles like the Honda CD110 A, the magnetic motor stator coil may

include ignition charging coils, lighting charging coils, and trigger coils.
Ignition charging coil:
Function: Responsible for providing low-voltage electricity for ignition to

the igniter. This is an essential step when starting the engine, as the

igniter requires this electrical energy to generate a high-voltage spark,

which ignites the mixture.
Characteristic: It is usually composed of a coil with a relatively thin

diameter to provide sufficient current without overheating.
Lighting charging coil:
Function: Responsible for providing power to lighting equipment such as

headlights and charging the battery. The electrical energy generated by

these coils can ensure sufficient lighting for the motorcycle during

operation and maintain the battery's charge.
Quantity: The number of lighting charging coils may vary depending on

the vehicle model and design. But generally speaking, they will work in

parallel to provide stable current.

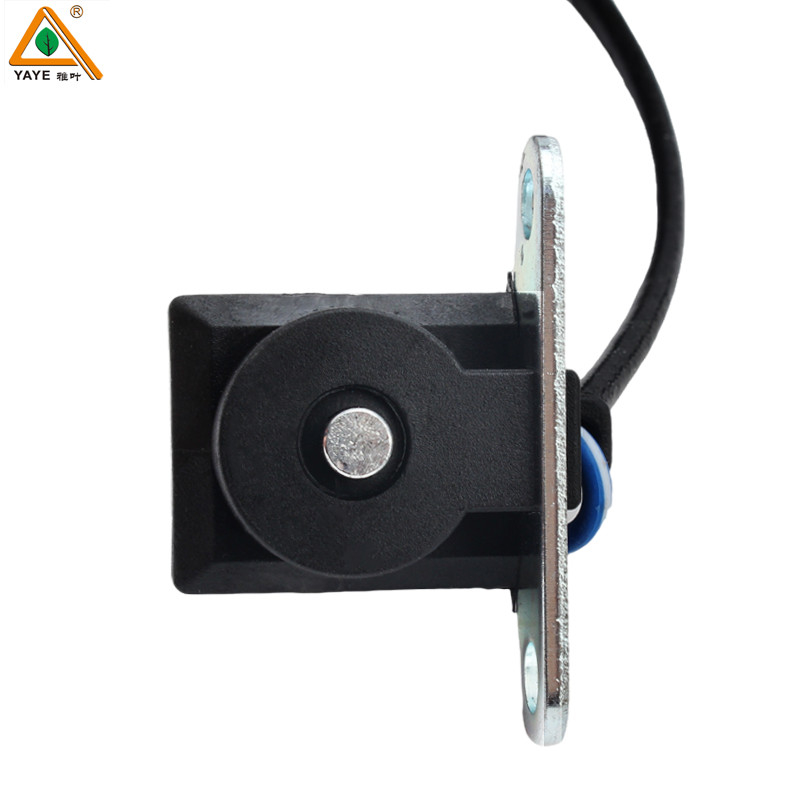

Trigger coil:
Function: Responsible for providing ignition signals to the igniter in a

timely manner to trigger the igniter to discharge to the high-voltage pack.

This is the key to ensuring that the ignition system can operate at the

correct timing.
Location: The trigger coil is usually located next to the stator and works

in conjunction with the ignition charging coil and lighting charging coil.
Due to the fact that the stator coil of a magneto is an important

component in the electrical system of a motorcycle, its performance and

condition have a direct impact on the normal operation of the motorcycle.

If problems such as difficulty starting the motorcycle, insufficient lighting,

or decreased battery power are found, it may be necessary to check and

replace the stator coil of the magnetic motor.
When replacing the stator coil of the magnetic motor, it should be ensured

to select the coil that matches the vehicle model and install and debug it

according to the correct steps. At the same time, regular maintenance and

inspection of the magneto system is also an important measure to maintain

its good working condition.
The stator coil of the Honda CD110 A magnetic motor is a key component

of the motorcycle electrical system, including the ignition charging coil,

lighting charging coil, and trigger coil. These coils work together to ensure

the proper ignition and charging functions of the motorcycle. When replacing

and maintaining, make sure to select coils that match the vehicle model and

follow the correct steps.
